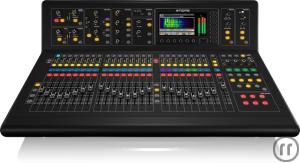

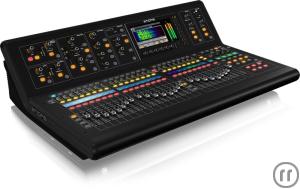

Digitale Konsole für Live- und Studio mit 40 Eingangskanäle , 32 MIDAS Mikrofonvorverstärker und 25 Mix-Busse
Eigenschaften:
• Live performance and studio recording digital console with up to 40 simultaneous input channels
• 32 award-winning MIDAS microphone preamplifiers
• 25 time-aligned and phase-coherent mix buses
• AES50 networking allows up to 96 inputs and 96 outputs
• Open architecture allows for future 96 kHz operation
• 192 kHz ADC and DAC converters for outstanding audio performance
• Industry-leading design by Bentley* Motors Designer
• High-performance carbon fibre, aluminium and high-impact steel structure
• 40 bit floating point digital signal processing
• 8 DCA and 6 mute groups
• 8 stereo signal processing effects engines
• 25 MIDAS PRO motorised 100 mm faders
• Daylight viewable 7” full colour TFT display screen
• 32 x 32 channel USB 2.0 audio interface
• DAW remote control emulations of Mackie Control* and HUI* protocols
• Optional wireless remote control with MIDAS Apps for iPhone* and iPad*
• Auto-ranging universal switch-mode power supply
• 3-Year Warranty Program*
• Designed and engineered in England
Spezifikationen:
Processing:
-Input Processing Channels: 32 Input Channels, 8 Aux Channels, 8 FX Return
Channels
-Output Processing Channels: 16
-16 aux buses, 6 matrices, main LRC: 100
-Internal Effects Engines (True Stereo / Mono): 16
-Internal Show Automation (structured Cues / Snippets): 500 / 100
-Internal Total Recall Scenes (incl. Preamplifiers and Faders): 100
-Signal Processing: 40-Bit Floating Point
-A/D Conversion (8-channel, 96 kHz ready): 114 dB Dynamic Range (A-weighted*)
-D/A Conversion (stereo, 96 kHz ready): 120 dB Dynamic Range (A-weighted*)
-I/O Latency (Console Input to Output): 0.8 ms
-Network Latency (Stage Box In > Console > Stage Box Out): 1.1 ms

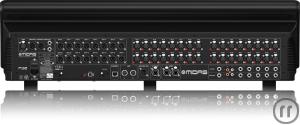

Connectors:
-MIDAS PRO Series Microphone Preamplifier (XLR): 32
-Talkback Microphone Input (XLR): 1
-RCA Inputs / Outputs: 2
-XLR Outputs: 16
-Monitoring Outputs (XLR / ¼" TRS Balanced): 2
-Aux Inputs/Outputs (¼" TRS Balanced): 6
-Phones Output (¼" TRS): 2 (Stereo)
-Digital AES/EBU Output (XLR): 1
-AES50 Ports (KLARK TEKNIK SuperMAC): 2
-Expansion Card Interface: 32 Channel Audio Input / Output
-ULTRANET P-16 Connector (No Power Supplied): 1
-MIDI Inputs / Outputs: 1
-USB Type A (Audio and Data Import / Export): 1
-USB Type B, rear panel, for remote control: 1
-Ethernet, RJ45, rear panel, for remote control: 1
Mic Input Characteristics:
-Design: MIDAS PRO Series
-THD+N (0 dB gain, 0 dBu output): <0.01% (unweighted)
-THD+N (+40 dB gain, 0 dBu to +20 dBu output): <0.03% (unweighted)
-Input Impedance (Unbalanced / Balanced): 10 kohm / 10 kohm
-Non-Clip Maximum Input Level: +23 dBu
-Phantom Power (Switchable per Input): +48 V
-Equivalent Input Noise @ +45 dB gain (150 ? source): -125 dB (22 Hz-22 kHz, unweighted)
-CMRR @ Unity Gain (Typical): >70 dB
-CMRR @ 40 dB Gain (Typical): >90 dB
Input/Output Characteristics:
-Frequency Response @ 48 kHz Sample Rate: 0 dB to -1 dB (20 Hz-20 kHz)
-Dynamic Range, Analogue In to Analogue Out: 106 dB (22 Hz-22 kHz, unweighted)
-A/D Dynamic Range, Preamplifier and Converter (Typical): 109 dB (22 Hz-22 kHz, unweighted)
-D/A Dynamic Range, Converter and Output (Typical): 109 dB (22 Hz-22 kHz, unweighted)
-Crosstalk Rejection @ 1 kHz, Adjacent Channels: 100 dB
-Output level, XLR Connectors (Nominal / Maximum): +4 dBu / +21 dBu
-Output Impedance, XLR Connectors (Unbalanced / Balanced): 50 ohm / 50 ohm
-Input impedance, TRS Connectors (Unbalanced / Balanced): 20 kohm / 40 kohm
-Non-Clip Maximum Input Level, TRS Connectors: +21 dBu
-Output Level, TRS (Nominal / Maximum): +4 dBu / +21 dBu
-Output Impedance, TRS (Unbalanced / Balanced): 50 ohm / 50 ohm
-Phones Output Impedance / Maximum output Level: 40 ohm / +21 dBu (Stereo)
-Residual Noise Level, Out 1-16 XLR Connectors, Unity Gain: -85 dBu 22 Hz-22 kHz unweighted
-Residual Noise Level, Out 1-16 XLR Connectors, Muted: -88 dBu 22 Hz-22 kHz unweighted
-Residual Noise Level, TRS and Monitor out XLR Connector: -83 dBu 22 Hz-22 kHz unweighted
Display:
-Main Screen: 7" TFT LCD, 800 x 480 Resolution, 262k Colours
-Channel LCD Screen: 128 x 64 LCD with RGB Colour Backlight
-Main Meter: 24 Segment (-57 dB to Clip)
Power:
-Switch-Mode Power Supply: Auto-Ranging 100-240 VAC (50/60 Hz) ± 10%
-Power Consumption: 120 W
Physical:
-Standard Operating Temperature Range: 5°C – 40°C (41°F – 104°F)
-Dimensions: 891 x 612 x 256 mm (35.1 x 24.1 x 10.1")
-Weight: 25 kg (55 lbs)
