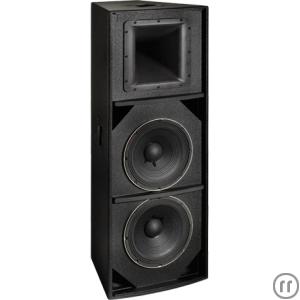

EV PHOENIX, PX 2122, Lautsprecher, mid high

Artikelnummer: 304221

Preis:


Unverbindliche Anfrage

Mieten

Mietzeitraum
Übersicht
Art:
Passivlautsprecher

Lieferbedingungen:

  • Die Lieferung ist möglich.

Zusatzvereinbarungen:

Mitbedingungen sehe pdf „AGB SLSet“

Der PX2122 ist für Langhub-Netzanwendungen konzipiert, in der Regel mit zwei oder mehr Einheiten angeordnet.



Eigenschaften:
• Dual ND2 2” Voice Coil, 1” Exit Neodymium Compression Drivers
• Dual DVX3121 12” LF Transducers with Forced Air Cooling
• Long-Throw 30° x 45° Rotatable Coverage Pattern
• 1000W Continuous (4000W Peak) Power Handling
• Biamp Operation
• Very High Sensitivity, 138 dB max. SPL
• Integral Rigging Points for Eyebolts or Optional Rigging Kit
• Designed for horizontal arrays of two or three cabinets



Spezifikationen:
-Chassis Size: 304.8 mm (12")
-Color: Black
-Input Connections: Parallel Neutrik® NL4
-Speaker Type: Full-range, Mid-High, Two-Way
-Frequency Response (-3 dB): 80 - 15000 Hz
-Frequency Response (-10 dB): 60 - 19000 Hz
-Internal Crossover: No
-Sensitivity 1 W/1 m: 102 dB
-Max. SPL/1m (calc): 138 dB Half Space
-Coverage (Nominal -6 dB) H: 45 °
-Coverage (Nominal -6 dB) V: 30 °
-Rotatable Horn: Yes
-LF Transducer: (2) DVX3121, 12 in (305mm) Driver
-LF Power Handling: 1000 Watts
-HF Power Handling: 80 Watts
-LF Nominal Impedance: 4 Ohm
-HF Transducer: (2) ND2-16, 2 in (50mm) Diaphragm Compression Drivers
-HF Nominal Impedance: 8 Ohm
-Enclosure Material: 18mm Plywood with Black EVCoat
-Flying: Optional
-Outdoor: No
-Grill: Polyester Powder Coated, 16GA Galvanized Steel, with Rotatable Logo
-Height: 1219 mm (47.99")
-Width: 457 mm (17.99")
-Depth: 445 mm (17.52")
-Weight Net: 50.1 kg (110.45 lbs)

Der PX2122 ist für Langhub-Netzanwendungen konzipiert, in der Regel mit zwei oder mehr Einheiten angeordnet.



Eigenschaften:
• Dual ND2 2” Voice Coil, 1” Exit Neodymium Compression Drivers
• Dual DVX3121 12” LF Transducers with Forced Air Cooling
• Long-Throw 30° x 45° Rotatable Coverage Pattern
• 1000W Continuous (4000W Peak) Power Handling
• Biamp Operation
• Very High Sensitivity, 138 dB max. SPL
• Integral Rigging Points for Eyebolts or Optional Rigging Kit
• Designed for horizontal arrays of two or three cabinets



Spezifikationen:
-Chassis Size: 304.8 mm (12")
-Color: Black
-Input Connections: Parallel Neutrik® NL4
-Speaker Type: Full-range, Mid-High, Two-Way
-Frequency Response (-3 dB): 80 - 15000 Hz
-Frequency Response (-10 dB): 60 - 19000 Hz
-Internal Crossover: No
-Sensitivity 1 W/1 m: 102 dB
-Max. SPL/1m (calc): 138 dB Half Space
-Coverage (Nominal -6 dB) H: 45 °
-Coverage (Nominal -6 dB) V: 30 °
-Rotatable Horn: Yes
-LF Transducer: (2) DVX3121, 12 in (305mm) Driver
-LF Power Handling: 1000 Watts
-HF Power Handling: 80 Watts
-LF Nominal Impedance: 4 Ohm
-HF Transducer: (2) ND2-16, 2 in (50mm) Diaphragm Compression Drivers
-HF Nominal Impedance: 8 Ohm
-Enclosure Material: 18mm Plywood with Black EVCoat
-Flying: Optional
-Outdoor: No
-Grill: Polyester Powder Coated, 16GA Galvanized Steel, with Rotatable Logo
-Height: 1219 mm (47.99")
-Width: 457 mm (17.99")
-Depth: 445 mm (17.52")
-Weight Net: 50.1 kg (110.45 lbs)

Art:
Passivlautsprecher

Lieferbedingungen:

  • Die Lieferung ist möglich.

Zusatzvereinbarungen:

Mitbedingungen sehe pdf „AGB SLSet“
