Clean, compact design — built to blend in
Lightweight column speaker array with cable‑free connection quickly secures pole to sub.
Easy transport and setup

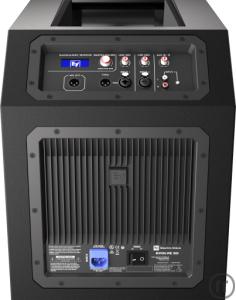

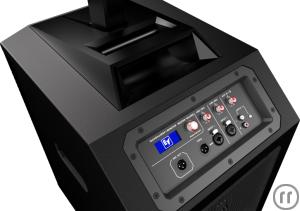

Ergonomically designed handles on both the array and the sub to enhance portability. Angled interface gives user easy access to make adjustments and connections on input panel.
Real PA performance
Legendary EV audio quality via eight 3.5‑inch full‑range drivers and a 12‑inch subwoofer, powered by a three‑channel amp for high output. Cutting‑edge components and tuning provide full‑sized sound in a super‑streamlined, plug‑and‑play format.
Wide, even coverage
Custom waveguides provide ultra-wide 120° horizontal coverage and array‑formed 40° asymmetrical vertical pattern control. No energy is wasted — exceptional audience coverage and clarity from front to back.
High‑quality Bluetooth®* audio
For convenient streaming of background music or musical accompaniment direct from any mobile device.
*Bluetooth® is available in select countries.
Wireless control and monitoring via the new Bluetooth®* QuickSmartMobile app
QuickSmartDSP provides best‑in‑class processing via EV's signature single‑knob user interface with LCD
Easy setup via four presets (Music, Live, Speech, Club), three‑band EQ, five user‑programmable presets, output delay, phantom power, input level control and metering, and master volume control to optimize gain structure.
Designed to deliver an uncompromising combination of light weight, low‑profile looks, and superior Electro‑Voice audio quality, the EVOLVE 50 sets a new performance standard for powered column systems.
The perfect choice for DJs, mobile entertainers, bands, singer/songwriters, and any venue where high‑output portable sound is needed — no other column system currently available sounds as good, looks as good, or is as easy to use. The smooth clarity of the EV sound in a sleek new form factor.
-Weight Net--26.25kg (57.87 lbs)
-Depth--Sub: 18.5 in; 471mm Column: 6.9 in; 172mm Pole: 2.2 in; 55mm
-Width--Sub: 13.6 in; 345mm Column: 4.0 in; 102mm Pole: 1.9 in; 48.5mm
-Height--Sub: 20.9 in; 230mm Column: 32.5 in; 825mm Pole: 36.6 in; 929mm
-Connector Type--2x XLR/TRS combo jack input 1x 3.5 mm Input 1x Stereo RCA input 1x Wireless Bluetooth® audio input 1x XLR THRU output 1x XLR MIX OUT output
-Coverage (Nominal -6 dB) H--120°
-Coverage (Nominal -6 dB) V--40°
-Enclosure Material--sub – 15mm plywood, column – poly composite, pole – aluminum
-Frequency Range (-10 dB)--37 Hz – 20k Hz
-Frequency Response (-3 dB)--43 Hz – 20 kkHz
-Grille--Steel with black powder coat
-HF Power Handling--500Watts
-LF Power Handling--500Watts
-Max. SPL/1m (calc)--127dB
-Power Consumption--100 - 240 V AC, 50 - 60 Hz, 1.5 - 0.6A
-Powered or Passive--Powered
-Shipping Weight--31.3kg (69 lbs)
