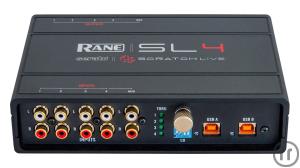

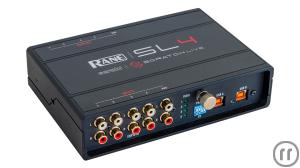

Rane Serato SL4

Das eigenständige DJ-Interface mit zwei USB-Ports, hervorragenden Sound mit 96 kHz Abtastrate, 24-Bit-Digital-Audio-Verarbeitung und eine galvanische Trennung zu bieten Computer um Rauschen und Störungen zu beseitigen.

Gepaart mit geringer Latenz ASIO und Core Audio-Treiber kann die SL4 auch als Studio-Produktionstool hochwertigen verwendet werden.

Eigenschaften:

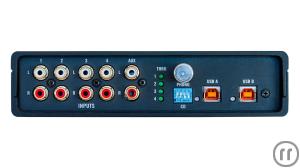

 Inputs for four turntables or CD decks, switchable in any combination.
 Two high-speed USB 2.0 ports for seamless DJ changeover and back-to-back performance.
 Aux Input for session recording or LiveFeed.

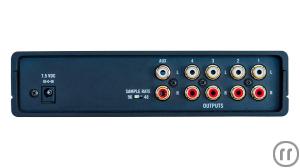

 Aux Output assignable to the SP-6 Sample Player and The Bridge.
 48 kHz and 96 kHz sample rate switch on the SL4 rear.
 10-in 10-out USB sound card with any software supporting ASIO or Core Audio.
 Built in galvanic isolation for the purest audio signal.
 Four software-switchable analog Thru connections for regular vinyl or CD.
 Bus power from either USB port or the included external power supply.

Spezifikationen:
 Interface: USB 2.0 High Speed
 Power Req: 500 mA, 5.0 Volts
 Audio Channels: Ten Record and Ten Playback USB Audio Channels
 Power Supply: 7.5 Volts (included)
 Converters: 24-bit / 48 kHz or 96 kHz sample rate switchable
 DAC Dynamic Range: 104.5 dB,
A-weighted
 ADC Dynamic Range: 103 dB,
A-weighted
 Dynamic Range: 101 dB
A-weighted analog in to analog out
 Frequency Response: -0.6 dB @ 20 Hz, -0.03 dB @ 20 kHz
 THD+N: 0.007% at 1 kHz, 20 Hz to 20 kHz BW
 Inputs: Inputs 1-4 individually Phono / Line switchable
 Aux Input: Line-Level only
 Gain: Unity
 Maximum Input / Output: 3 Vrms @ 1 kHz
 Switched Phono Input Max: 70 mV rms @ 1 kHz
 SL4 Unit Size: 7.25˝ x 5˝ x 1.7˝ (18.4 x 12.6 x 4.3 cm)
 Shipping Size: 14˝ x 14˝ x 4˝ (36 x 36 x 10 cm) [tentative]
 Weight: 6 pounds (3 kg) [tentative
