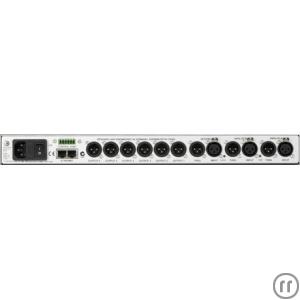

EV DX 46; 24 bit, digital sound processor, 2 in 6,

Artikelnummer: 304261

Preis:


Unverbindliche Anfrage

Mieten

Mietzeitraum
Übersicht

Lieferbedingungen:

  • Die Lieferung ist möglich.

Zusatzvereinbarungen:

Mitbedingungen sehe pdf „AGB SLSet“

Two-in/six-out FIR-Drive sound system processor



Eigenschaften:
• IRIS-Net software provides complete control, monitoring and supervision
• FIR-Drive loudspeaker optimization
• Analog and AES/EBU inputs
• Switchable -6 dB pre-A/D converter pad
• 24-bit AD/DA conversion
• 48-bit filter algorithms
• 116 dB dynamic range (A-weighted)
• Ethernet and USB data interfaces
• Dedicated array EQ and delay sections
• 4 separate delay sections
• 5 contact closure inputs
• 60 factory presets, 30 user presets
• Unique edit/compare mode for audible parameter adjustment
• Full loudspeaker protection package, including both Peak Anticipation and TEMP limiters
• Editor Software IRIS-Net



Spezifikationen:
-A/D Conversion: 24-Bit Delta Sigma
-Analog Inputs: Two XLR, Two XLR THRU OUT
-Analog Outputs: Six XLR
-Control Protocol: USB, Ethernet
-D/A Conversion: 24-Bit Delta Sigma
-Data Format: 24-Bit
-Digital Inputs: 1 XLR AES/EBU (2Ch)
-Dynamic Range: 115 dB A-weighted
-Frequency Response: 20 Hz - 22 kHz ±0.5 dB
-Input Impedance (Balanced): 10 kohm
-Internal Processing: 48-Bit Double Precision
-Maximum Input Voltage: 8.7 V / +21 dBu Without -6 dB Analog Pad Engaged
-Maximum Output Voltage: 8.7 V / +21 dBu
-Nominal Input Voltage: 1.55V/+ 6 dBu
-Nominal Output Voltage: 1.55V/+ 6 dBu
-Output Impedance (Balanced): 50 ohm
-Sample Rate: 48 kHz
-THD+N: <0.002% band limited 20 Hz to 20 kHz
-Height: 1RU 44.25 mm (1.74")
-Width: 482.6 mm (19")
-Depth: 355.6 mm (14")
-Weight Net: 4.6 kg (10.14 lbs)

Two-in/six-out FIR-Drive sound system processor



Eigenschaften:
• IRIS-Net software provides complete control, monitoring and supervision
• FIR-Drive loudspeaker optimization
• Analog and AES/EBU inputs
• Switchable -6 dB pre-A/D converter pad
• 24-bit AD/DA conversion
• 48-bit filter algorithms
• 116 dB dynamic range (A-weighted)
• Ethernet and USB data interfaces
• Dedicated array EQ and delay sections
• 4 separate delay sections
• 5 contact closure inputs
• 60 factory presets, 30 user presets
• Unique edit/compare mode for audible parameter adjustment
• Full loudspeaker protection package, including both Peak Anticipation and TEMP limiters
• Editor Software IRIS-Net



Spezifikationen:
-A/D Conversion: 24-Bit Delta Sigma
-Analog Inputs: Two XLR, Two XLR THRU OUT
-Analog Outputs: Six XLR
-Control Protocol: USB, Ethernet
-D/A Conversion: 24-Bit Delta Sigma
-Data Format: 24-Bit
-Digital Inputs: 1 XLR AES/EBU (2Ch)
-Dynamic Range: 115 dB A-weighted
-Frequency Response: 20 Hz - 22 kHz ±0.5 dB
-Input Impedance (Balanced): 10 kohm
-Internal Processing: 48-Bit Double Precision
-Maximum Input Voltage: 8.7 V / +21 dBu Without -6 dB Analog Pad Engaged
-Maximum Output Voltage: 8.7 V / +21 dBu
-Nominal Input Voltage: 1.55V/+ 6 dBu
-Nominal Output Voltage: 1.55V/+ 6 dBu
-Output Impedance (Balanced): 50 ohm
-Sample Rate: 48 kHz
-THD+N: <0.002% band limited 20 Hz to 20 kHz
-Height: 1RU 44.25 mm (1.74")
-Width: 482.6 mm (19")
-Depth: 355.6 mm (14")
-Weight Net: 4.6 kg (10.14 lbs)
